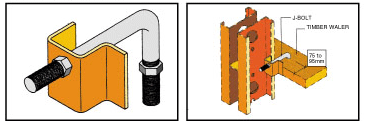

Timber Waling Clamp

Used to clamp timber walers to the Soldier at any height. One arm of the j-bolt is bolted through the timber waler 18mm dia hole to be drilled 75mm-95mm from edge). The other is clamped over the flange of the Soldier.

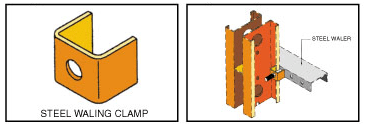

Steel Waling Clamp

Used to clamp steel walers to the Soldier at any height. The clamp fits over the flange of the Soldier and is secured to the waler by bolting through one M16X75mm bolt & nut.

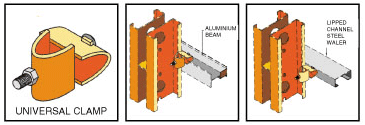

Universal Clamp

Used to clamp aluminium or lipped channel walers to the Soldier at any height. It is supplied with bolt & nut.
